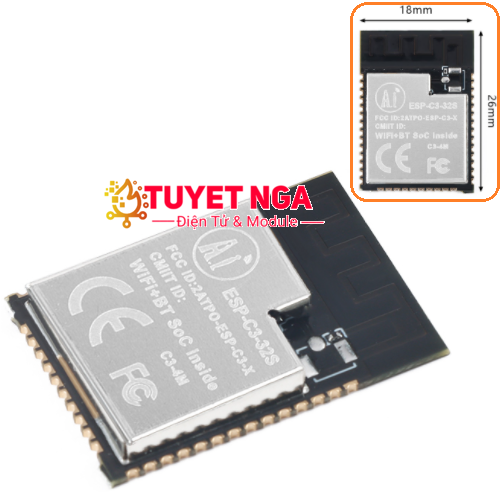

ESP-C3-32S Module Wifi ESP32-C3-32S  sử dụng RF đa chức năng, kích thước nhỏ được trang bị anten trên bo mạch.

Thông số kỹ thuật :

• Complete Wi-Fi 802.11b/g/n, 1T1R mode data rate up to 150Mbps
• Support BLE5.0 and rate support: 125Kbps, 500Kbps, 1Mbps,2Mbps
• Onboard ESP32-C3 chip, 32-bit RISC-V single-core processor, supports a clock frequency of up to 160 MHz, with 400 KB SRAM, 384 KB ROM, 8KB RTC SRAM
• Support UART/PWM/GPIO/ADC/I2C/I2S interface, temperature sensor, pulse counter
• SMD-38 package
• Integrated Wi-Fi MAC/ BB/RF/PA/LNA/BLE
• Support multiple sleep modes, deep sleep electric current is less than 5uA
• UART rate up to 5Mbps
• Support STA/AP/STA+AP mode and mix mode
• Support Smart Config (APP)/AirKiss (WeChat) of Android and IOS One-click network configuration
• Support UART port local upgrade and remote firmware upgrade (FOTA)
• General AT commands can be better understand
• Support secondary development, integrated Linux development environment
• ESP-C3-32S module acquiesce in using the built-in 2MByte Flash, meanwhile support external Flash version

Hướng dẫn sử dụng.
