MẠCH HIỂN THỊ ĐỘ ẨM NHIỆT ĐỘ XY-WTH1

Giá bán
0₫
  • Số lượng sản phẩm: Còn
  • Phí vận chuyển: Tính phí khi thanh toán

1.The automatic identification of work mode:

The system automatically according to the start/stop temperature, identify work mode;

Start temperature > stop temperature, cooling mode 'C'.

Start temperature < stop temperature, heating mode 'H'.

2.Cooling mode:

When the temperature ≥ Start temperature, relay conduction, red led on, refrigeration equipment begin to work;

When the temperature ≤ Stop temperature, relay disconnect, red led off, refrigeration equipment stop to work;

3.Heating mode:

When the temperature ≤ Start temperature, relay conduction, red led on, heating equipment begin to work;

When the temperature ≥ Stop temperature, relay disconnect, red led off, heating equipment stop to work;

4.Temperature correction function OFE (-10.0 ~ 10℃):

The system is working for a long time and may be biased, through this function correction, the actual temperature = measuring temperature + calibration value;

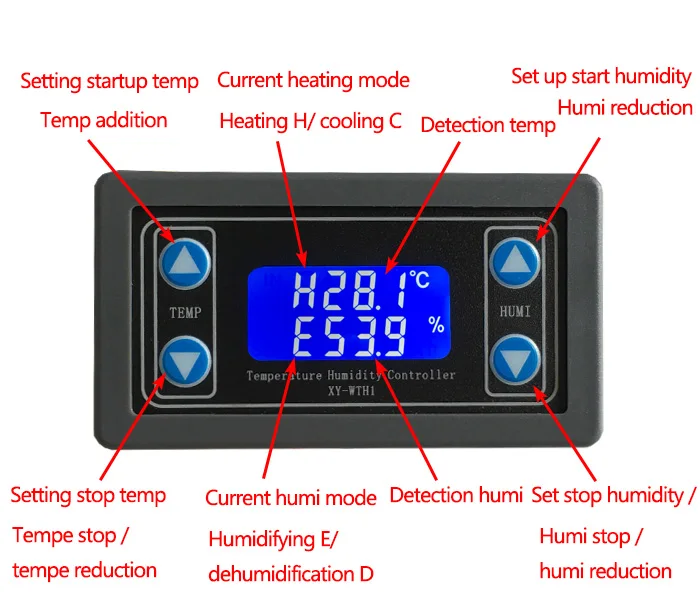

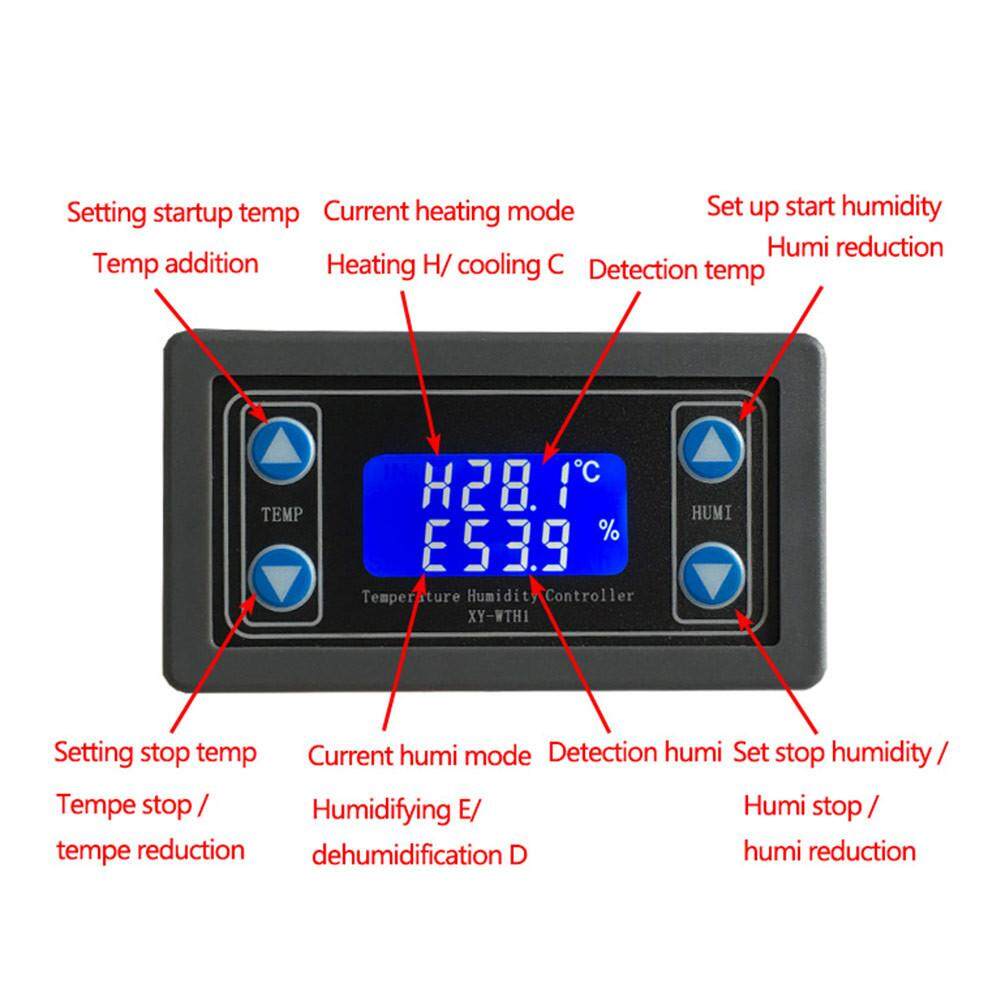

How to set the start/stop temperature:

1. In the running interface, Long Press  TM+  key more than 3 seconds, into the start temperature settings interface, can be modified by TM+ TM- key, to be modified, waiting for 6s automatic exit and save;

2. In the running interface, Long Press  TM- key more than 3 seconds, into the stop temperature settings interface, can be modified by TM+ TM- key, to be modified after the parameters, waiting for 6s automatic exit and save;



The humidity function is as follows:

1.The automatic identification of work mode:

The system automatically according to the start/stop humidity, identify work mode;

Start humidity> stop humidity, dehumidification mode 'D'.

Start humidity< stop humidity, humidification mode 'E'.

2.Dehumidification mode:

When the humidity≥ Start humidity, relay conduction, green led on, dehumidification equipment begin to work;

When the humidity≤ Stop humidity, relay disconnect, green led off, dehumidification equipment stop to work;

3.Humidification mode:

When the humidity≤ Start humidity, relay conduction, green led on, humidification equipment begin to work;

When the humidity≥ Stop humidity, relay disconnect, green led off, humidification equipment stop to work;

4.Humidification correction function RH (-10.0 ~ 10%):

The system is working for a long time and may be biased, through this function correction, the actual humidity = measuring humidity + calibration value;



How to set the start/stop humidity:

1. In the running interface, Long Press ' RH+ ' key more than 3 seconds, into the start humidity settings interface, can be modified by RH + RH - key, to be modified, waiting for 6s automatic exit and save;

2. In the running interface, Long Press ' RH-' key more than 3 seconds, into the stop humidity settings interface, can be modified by RH+ RH- key, to be modified after the parameters, waiting for 6s automatic exit and save;

Kết quả hình ảnh cho XY-WTH1
